Custom Pontoon Trailer

Pontoon

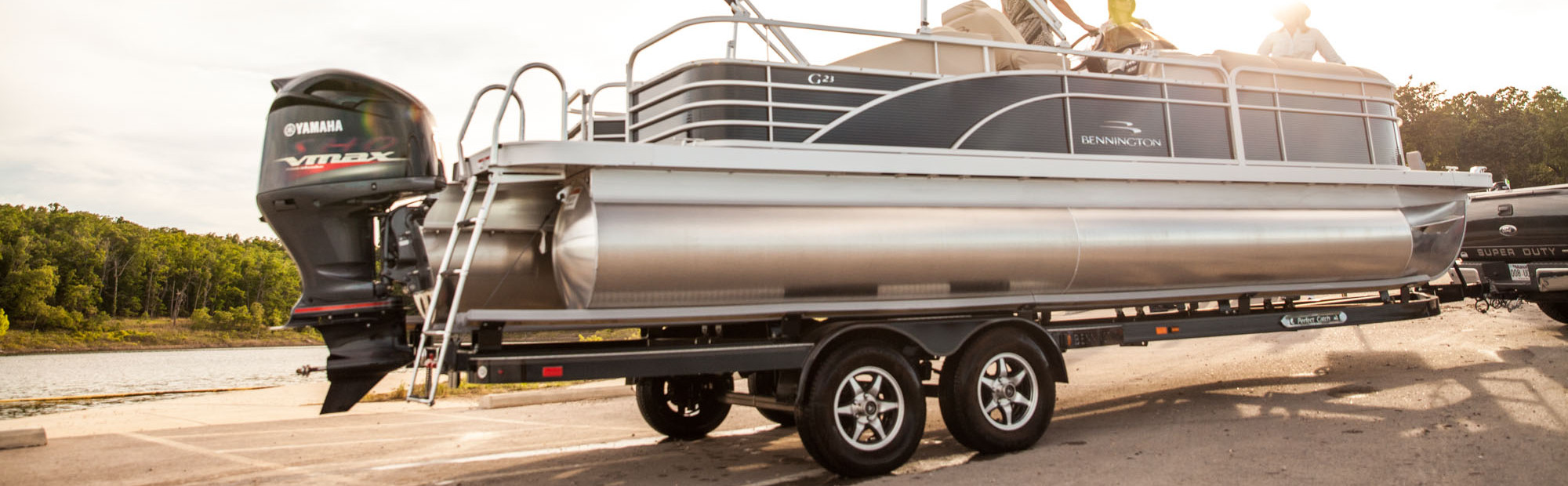

Just about everybody loves a pontoon boat, and EZ Loader has developed a model for every price point from our New Value Series, Standard Series, Aluminum I-Beam Series, and our top of the line Executive Series or X-treme Series with 18” wheels. Every one of our trailers comes with a 5 year from date of retail sale, 6 year from date of manufacture warranty. No other company can compare to EZ Loader's built-in features and options like our composite bunk covers, stainless steel ladders, swing out lower bottom step for easy access, optional aluminum wheels, rail lights with logos in spring axles for Value and Standard Series.

For the guy who wants it all, look at our X-treme Pontoon Series that features 18” wheels, color matched paint, Stainless steel ladder, torsions axles (excluding tri-axles) and so much more all standard. EZ Loader is the pontoon specialist and all of our trailers are NMMA and NATM Certified.

FEATURES

SPECS

Value Edition
Model Capacity GVWR Approx. Length Construction Finish # of Axles Suspension Brakes Wheels Tires
APVE1820 2650 3500 18-20 Tube Painted Black Single Spring Disc/1 Axle Silver Painted ST215/75D14C
APVE2021 3500 4600 20-21 Tube Painted Black Tandem Spring Disc/2 Axles Silver Painted ST175/80D13C
APVE2224 3800 5100 22-24 Tube Painted Black Tandem Spring Disc/2 Axles Silver Painted ST175/80D13C
Adjustable
Model Capacity GVWR Approx. Length Construction Finish # of Axles Suspension Brakes Wheels Tires
APW1820 2650 3500 18-20 Tube Painted Single Spring Disc/1 Axle Silver Painted ST215/75D14C
APW2021 3500 4600 20-21 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST175/80D13C
APW2224 3800 5100 22-24 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST175/80D13C
APW224XD 5500 7200 22-24 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST215/75D14C
APW2526 5500 7200 25-26 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST215/75D14C
APW2728 5500 7200 26-28 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST215/75D14C
APW6600 6600 9000 28-32 Tube Painted Tri-Axle Spring Disc/3 Axles Silver Painted ST215/75D14C
APW7500 7500 9999 28-32 Tube Painted Tri-Axle Spring Disc/3 Axles Silver Painted ST215/75D14C
APW7500XD (10-12 adj.) 7500 9999 28-32 Tube Painted Tri-Axle Spring Disc/3 Axles Silver Painted ST215/75D14C
Fitted
Model Capacity GVWR Approx. Length Construction Finish # of Axles Suspension Brakes Wheels Tires
FPW1820 2650 3500 18-20 Tube Painted Single Spring Disc/1 Axle Silver Painted ST215/75D14C
FPW2021 3500 4600 20-21 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST175/80D13C
FPW2224 3800 5100 22-24 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST175/80D14C
FPW2224XD 5500 7200 22-24 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST215/75D14C
FPW2526 5500 7200 25-26 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST215/75D14C
FPW2728 5500 7200 26-28 Tube Painted Tandem Spring Disc/2 Axles Silver Painted ST215/75D14C
FPW6600 6600 9000 28-32 Tube Painted Tri-Axle Spring Disc/3 Axles Silver Painted ST215/75D14C
FPW7500 7500 9999 28-32 Tube Painted Tri-Axle Spring Disc/3 Axles Silver Painted ST215/75D14C

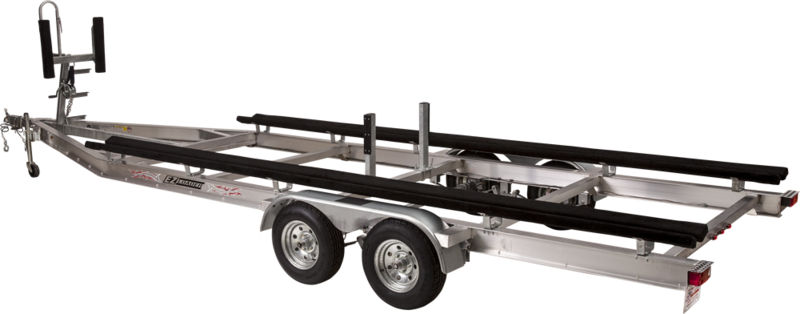

Aluminum I-BEAM
Model Capacity GVWR Approx. Length Construction Finish # of Axles Suspension Brakes Wheels Tires
PAIB20 2145 2995 18-20 I-BEAM Aluminum Single Spring N/A Galv V-5 ST215/75D14C
PAIB20B 2600 3500 18-20 I-BEAM Aluminum Single Spring Disc/1 Axle Galv V-5 ST215/75D14C
PAIB1820 3800 5074 18-20 I-BEAM Aluminum Tandem Spring Disc/2 Axles Galv V-5 ST175/80D13C
PAIB2224 4000 5440 22-24 I-BEAM Aluminum Tandem Spring Disc/2 Axles Galv V-5 ST175/80D13C
PAIB2526 5500 7000 25-26 I-BEAM Aluminum Tandem Spring Disc/2 Axles Galv V-5 ST205/75D14C
PAIB2728 5500 7150 27-28 I-BEAM Aluminum Tandem Spring Disc/2 Axles Galv V-5 ST215/75D14C
